Background
Marks et al (2024) evaluated the capacity to place needles into the salivary glands of 117 children under general anesthesia for botulinum toxin injection to treat sialorrhea. Initial needle placement directed by anatomic landmarks was then assessed by ultrasound. Only 32% of the needle placements targetted to the submandibular gland were confirmed to be in the gland by ultrasound. 68% of the parotid needle placements were on target. Subgroup analysis identified no difference in success when analyzed according to the seniority of the practitioner, age of patient or hand dominance.

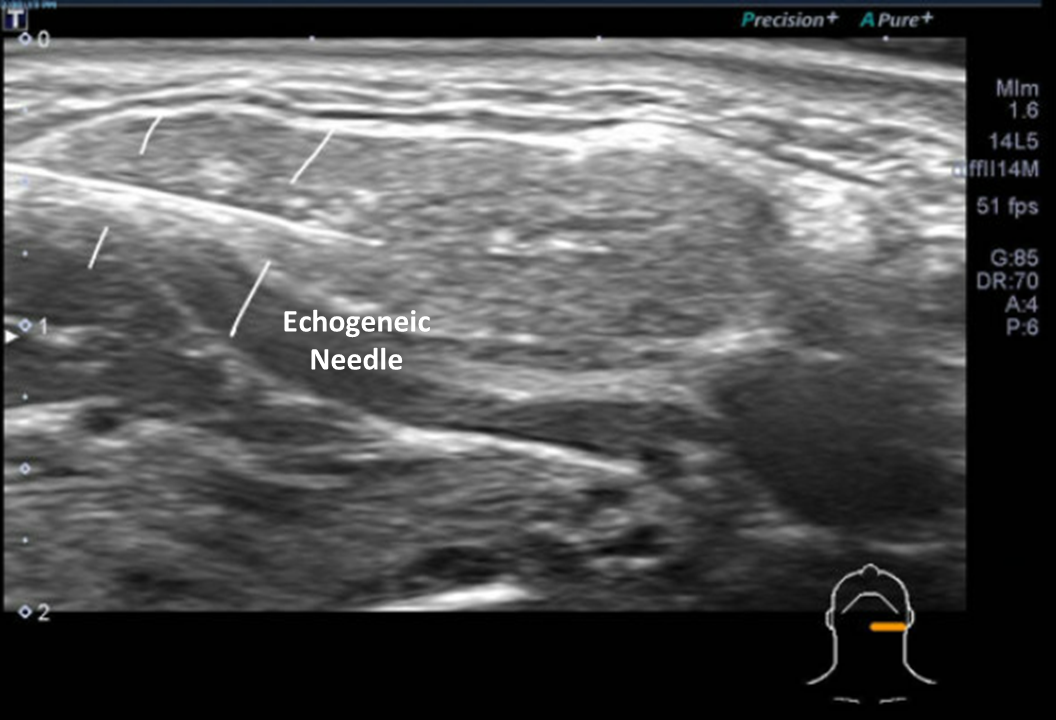

Our (Hoffman) technique employs ultrasound to place an echogenic needle (25 gauge, 5 cm long Chiba Biopsy Needle)

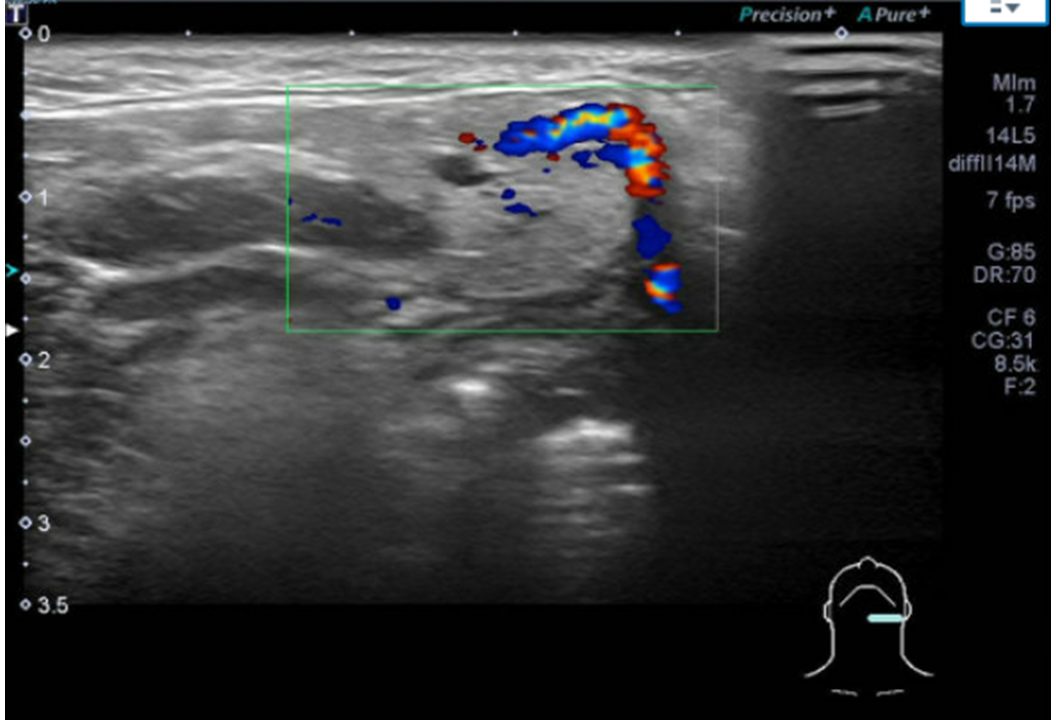

Via an anterior approach to avoid the prominent vascular supply. The facial artery is most dominant on the posterior and superior aspects of the gland per color doppler ultrasound image below:
Case History
Presentation to Clinic June 2022: Painful swelling left submandibular gland preceding 2 years with intermittent pain "7 / 10" radiating to left ear

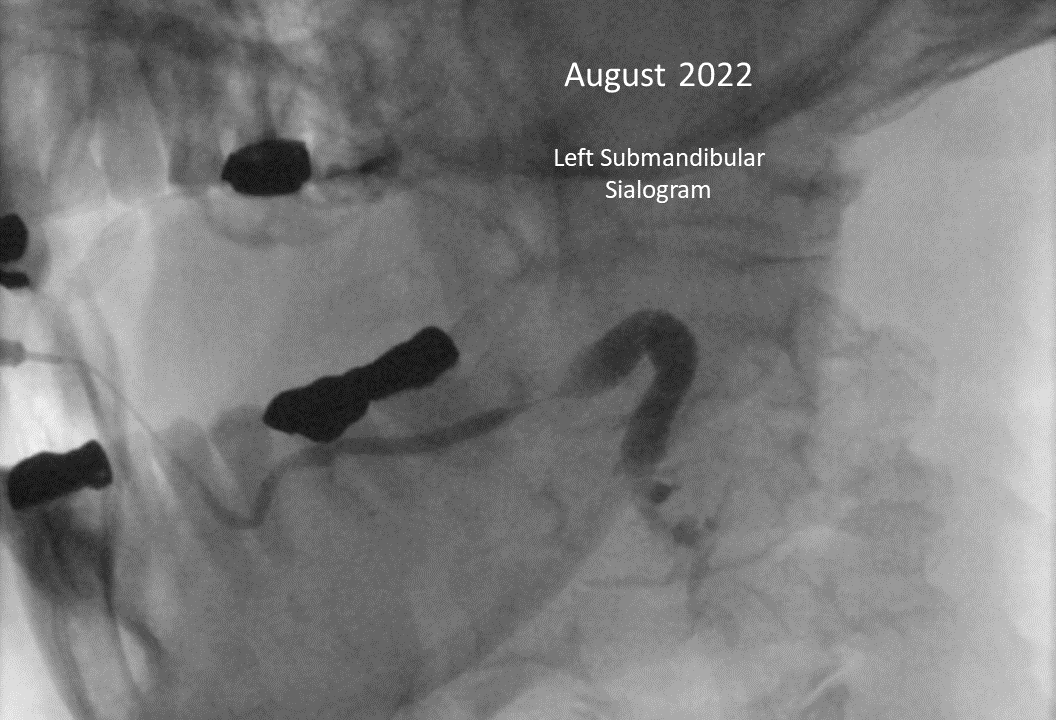

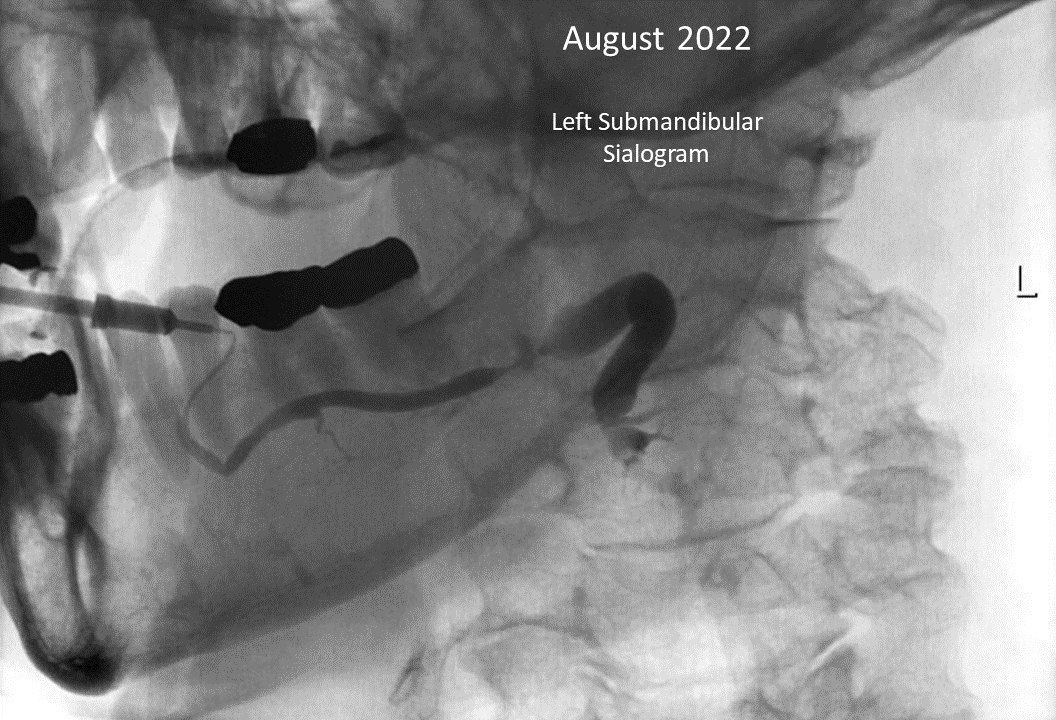

Sialogram August 2022: pre-stricture (proximal) ductal dilation
Sialendoscopy under general anesthesia with dilation and steroid insufflation January 2023: at best offered only minor improvement with still ongoing concerns that may have improved slightly but her perception that she is not getting saliva from that gland
In-Clinic Ultrasound guided botulinum (Botox®) injection: persistence of submandibular pain and swelling warranted further treatment with botulinum injection
Follow-Up 3 Months After Botox Injection: "feeling a lot better" following the Botox injection by way of 30 units delivered with ultrasound guidance to the left submandibular gland June 4, 2024. Still sometimes "get achy when she gets too tired" but relates it is relieved the constant and intense pain that she had previously sufficiently to the point that when I identified the potential value for a second injection she felt she was not there yet but should symptoms recur she may contact us.
Modified Operative Note
Procedure: Ultrasound guided Botox injection (30 units and 0.6 cc) to the left submandibular gland
Preop Diagnosis: Left submandibular sialadenitis with high-grade stricture refractory to treatment with sialendoscopy
Postop Diagnosis: Same
Surgeon: XXX
Assistant: XXX
Anesthesia: None

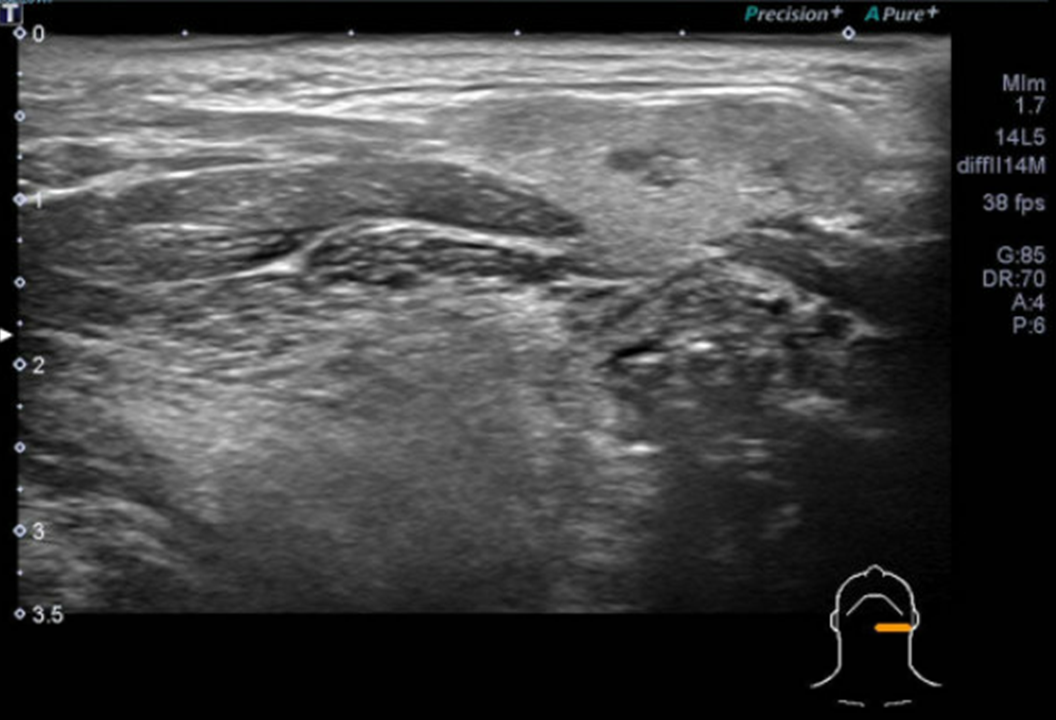

Description of Procedure: Following identification the patient informed consent and a brief timeout a diagnostic ultrasound was done of the left submandibular gland showing it to be intact with a prominent facial artery seen posterior and superior as denoted by color Doppler (see photos).

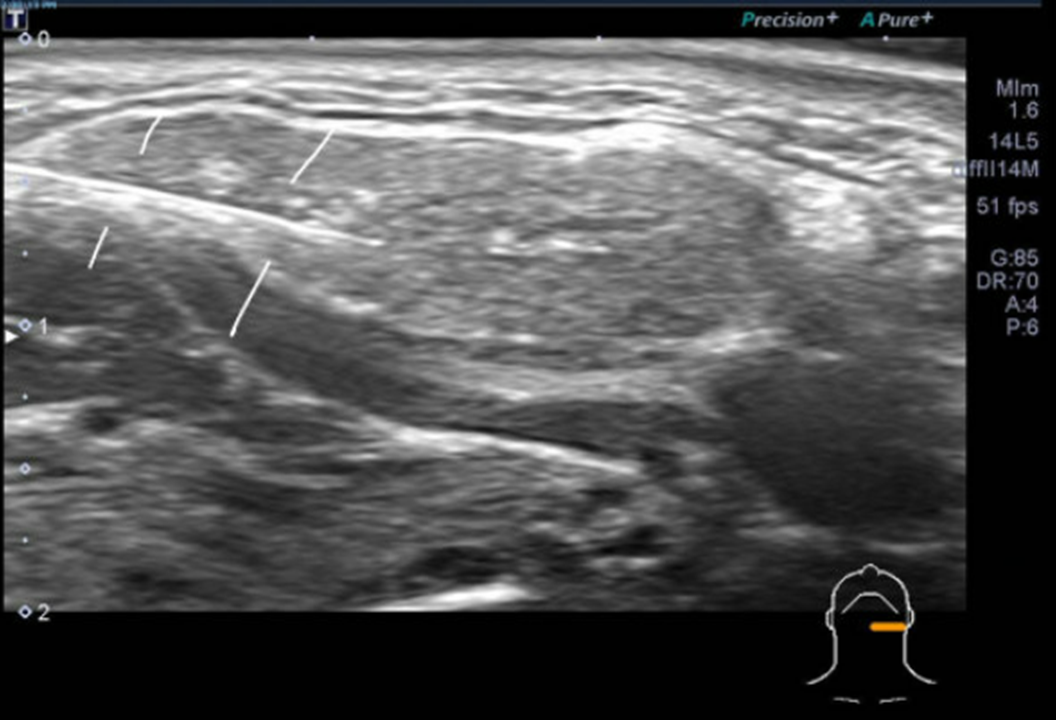

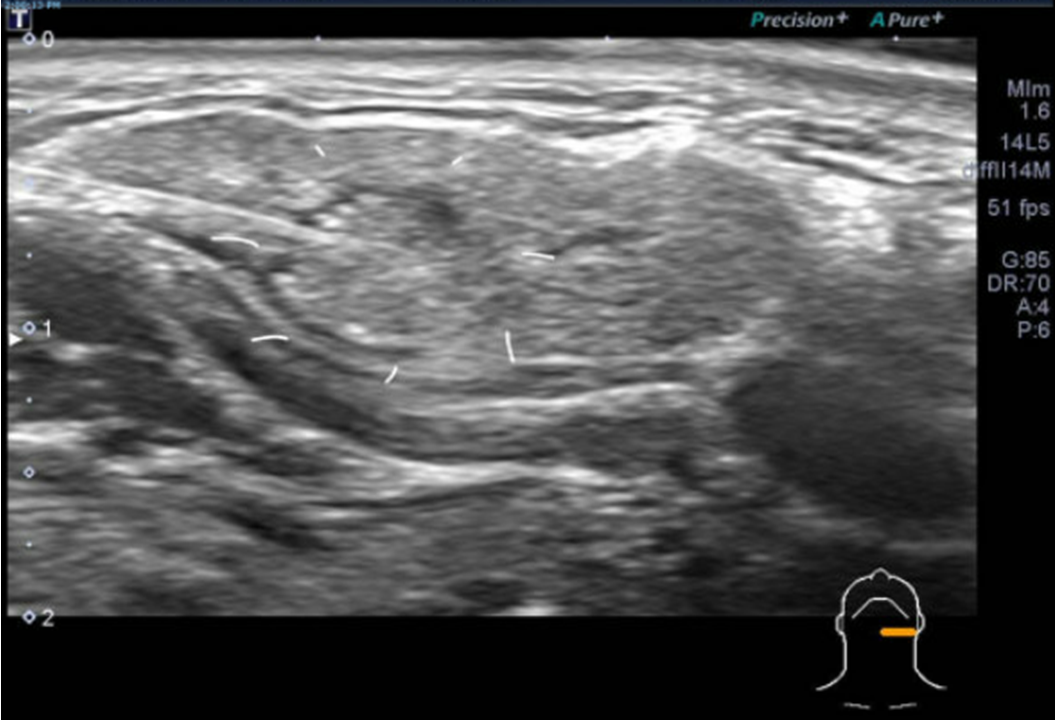

A 25-gauge Chiba needle primed and connected to a syringe containing Botox 30 units in 0.6 cc (5 units/0.1 cc) was then placed percutaneously through the anterior aspect of the skin overlying the anterior submandibular gland with ultrasound guidance (see photos) allowing for delivery of all 0.6 cc within the capsule of the submandibular gland. Reappraisal with ultrasound after injection showed no hematoma or signs of other extravasation she was observed show and show no neck swelling was discharged home with follow-up as per video telemedicine in 2 to 3 months
References
**Strohl MP, Chang CF, Ryan WR, Chang JL. Botulinum toxin for chronic parotid sialadenitis: A case series and systematic review. Laryngoscope Investig Otolaryngol. 2021 May 2;6(3):404-413. doi: 10.1002/lio2.558. PMID: 34195360; PMCID: PMC8223475
Guntinas-Lichius O, Jungehulsing M. Treatment of chronic parotid sialectasis with botulinum toxin A. Laryngoscope. 2002;112:586-587.
**Delagnes EA, Aubin-Pouliot A, Zheng M, Chang JL, Ryan WR. Sialadenitis without sialolithiasis: prospective outcomes after sialendoscopy-assisted salivary duct surgery. Laryngoscope. 2017;127:1073-1079.
Lovato A, Restivo DA, Ottaviano G, Marioni G, Marchese-Ragona R. Botulinum toxin therapy: functional silencing of salivary disorders. Acta Otorhinolaryngol Ital. 2017 Apr;37(2):168-171. doi: 10.14639/0392-100X-1608. PMID: 28516981; PMCID: PMC5463526.
Koch M, Kunzel J, Iro H, Psychogios G, Zenk J. Long-term results and subjective outcome after gland-preserving treatment in parotid duct stenosis. Laryngoscope. 2014;124:1813-1818.
Kwon SY, Chun KJ, Kil HK, Oh KH, Kim C, Jang SJ, Kim MS. Botulinum Toxin Injection for Chronic Parotitis: A Multi-Center and Prospective Trial. Laryngoscope. 2021 Jun;131(6):E1903-E1909. doi: 10.1002/lary.29225. Epub 2020 Oct 28. PMID: 33111982.
Guntinas-Lichius O, Klussmann JP, Wittekindt C, Stennert E. Parotidectomy for benign parotid disease at a university teaching hospital: outcome of 963 operations. Laryngoscope. 2006;116:534-540.
Aubin-Pouliot A, Delagnes EA, Eisele DW, Chang JL, Ryan WR. The Chronic Obstructive Sialadenitis Symptoms Questionnaire to assess sialendoscopy-assisted surgery. Laryngoscope. 2016;126:93-99.
Gillespie MB, O'Connell BP, Rawl JW, McLaughlin CW, Carroll WW, Nguyen SA. Clinical and quality-of-life outcomes following gland- preserving surgery for chronic sialadenitis. Laryngoscope. 2015;125: 1340-1344.
**Delagnes EA, Aubin-Pouliot A, Zheng M, Chang JL, Ryan WR. Sialadenitis without sialolithiasis: prospective outcomes after sialendoscopy-assisted salivary duct surgery. Laryngoscope. 2017;127:1073-1079.
Ellies M, Gottstein U, Rohrbach-Volland S, et al. Reduction of salivary flow with botulinum toxin: extended report on 33 patients with drooling, salivary fistulas, and sialadenitis. LaLaryngoscope 2004;114:1856-60
Truong K, Hoffman HT, Policeni B, Maley J. Radiocontrast Dye Extravasation During Sialography. Ann Otol Rhinol Laryngol. 2018 Mar;127(3):192-199. doi: 10.1177/0003489417752711. Epub 2018 Jan 7. PMID: 29308655.
Schwalje AT, Hoffman HT. Intraductal Salivary Gland Infusion With Botulinum Toxin. Laryngoscope Investig Otolaryngol. 2019 Sep 3;4(5):520-525. doi: 10.1002/lio2.306. PMID: 31637296; PMCID: PMC6793609.
Trapeau C, Foletti JM, Collet C, Guyot L, Chossegros C. Clinical efficacy of botulinum toxin in salivary duct stenosis: a preliminary study of six cases. J Stomatol Oral Maxillofac Surg 2017;118:349–352.
Kruegel J, Winterhoff J, Koehler S, Matthes P, Laskawi R. Botulinum toxin: a noninvasive option for the symptomatic treatment of salivary gland stenosis – a case report. Head Neck 2010;32:959–963.
Daniel SJ, Diamond M. Botulinum toxin injection: a novel treatment for recurrent cystic parotitis Sjogren syndrome. Otolaryngol Head Neck Surg 2011;145:180–181.
O’Neil LM, Palme CE, Riffat F, Mahant N. Botulinum toxin for the management of sjogren syndrome-associated recurrent parotitis. J Oral Maxillofac Surg 2016;74:1771-1773
Capaccio P, Torretta S, Osio M, Minorati D, Ottaviani F, Sambataro G, Nascimbene C, Pignataro L. Botulinum toxin therapy: a tempting tool in the management of salivary secretory disorders. Am J Otolaryngol. 2008 Sep-Oct;29(5):333-8. doi: 10.1016/j.amjoto.2007.10.003. Epub 2008 Jun 16. PMID: 18722890.
Gillespie MB, Intaphan J, Nguyen SA. Endoscopic-assisted management of chronic sialadenitis. Head Neck. 2011 Sep;33(9):1346-51. doi: 10.1002/hed.21620. Epub 2011 Jan 20. PMID: 21254296.
Reddy R, White DR, Gillespie MB. Obstructive parotitis secondary to an acute masseteric bend. ORL J Otorhinolaryngol Relat Spec. 2012;74(1):12-5. doi: 10.1159/000334246. Epub 2011 Dec 8. PMID: 22156562.
Graillon N, Le Roux MK, Chossegros C, Haen P, Lutz JC, Foletti JM. Botulinum toxin for ductal stenosis and fistulas of the main salivary glands. Int J Oral Maxillofac Surg. 2019 Nov;48(11):1411-1414. doi: 10.1016/j.ijom.2019.04.015. Epub 2019 May 6. PMID: 31072799.
Ryan WR, Plonowska KA, Gurman ZR, Aubin-Pouliot A, Chang JL. One-Year symptom outcomes after sialolithiasis treatment with sialendoscopy-assisted salivary duct surgery. Laryngoscope. 2019 Feb;129(2):396-402. doi: 10.1002/lary.27398. Epub 2018 Aug 27. PMID: 30151855.
Plonowska KA, Gurman ZR, Humphrey A, Chang JL, Ryan WR. One-year outcomes of sialendoscopic-assisted salivary duct surgery for sialadenitis without sialolithiasis. Laryngoscope. 2019 Apr;129(4):890-896. doi: 10.1002/lary.27433. Epub 2018 Aug 27. PMID: 30152080.
Mandour MA, Helmi AM, El-Sheikh MM, El-Garem F, El-Ghazzawi E. Effect of tympanic neurectomy on human parotid salivary gland. Histopathologic, Histochemical, and Clinical Study. Arch Otolaryngol. 1977 Jun;103(6):338-41. doi: 10.1001/archotol.1977.00780230060008. PMID: 869767.
Callander JK, Plonowska-Hirschfeld K, Gulati A, Chang JL, Ryan WR. Symptom Outcomes After Sialendoscopy-Assisted Salivary Duct Surgery: A Prospective 6-Year Study. Laryngoscope. 2023 Apr;133(4):792-800. doi: 10.1002/lary.30294. Epub 2022 Jul 18. PMID: 35848880.
Marks IH, Ridgley Vaidya J, Israel O, Nixon P, Sharma R. Does injection of botulinum toxin to salivary glands require ultrasound guidance? Int J Pediatr Otorhinolaryngol. 2024 Nov;186:112114. doi: 10.1016/j.ijporl.2024.112114. Epub 2024 Sep 17. PMID: 39317103.
